Item No :
51106Size (d*D*B) :
30x47x11mmLead Time :
3-5 daysWeight :
0.064KGShipping Port :
GuangZhou, NingBo, ShangHaiMOQ :

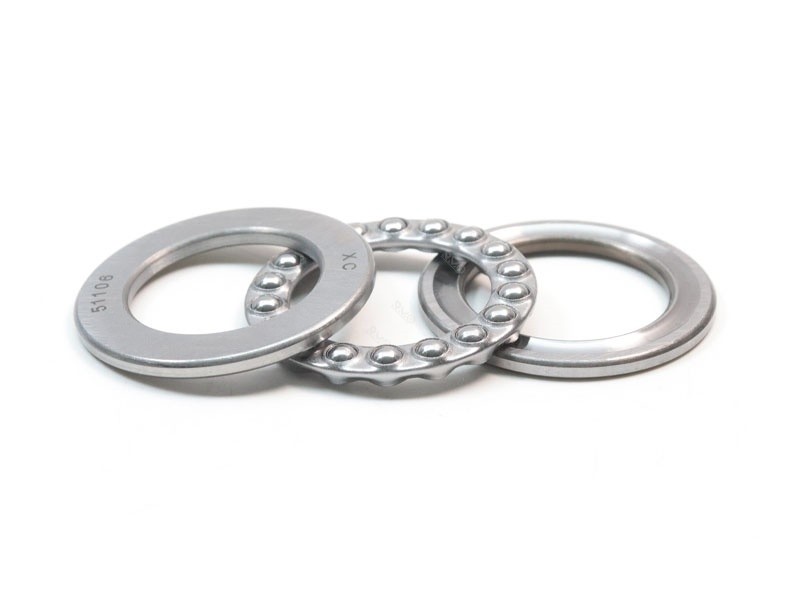

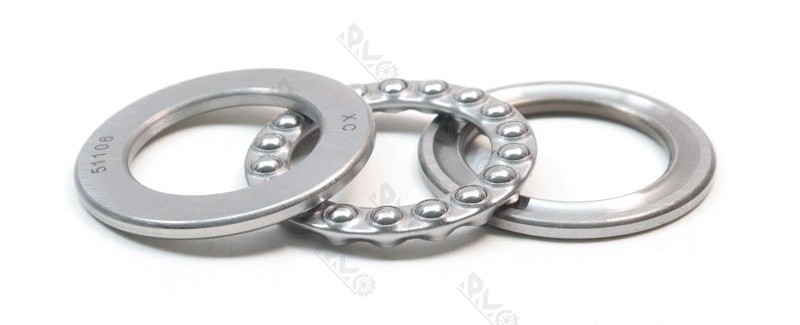

50 pcs30x47x11mm 51106 Thrust Ball Bearing for the Gearbox
⚙️Structural features:

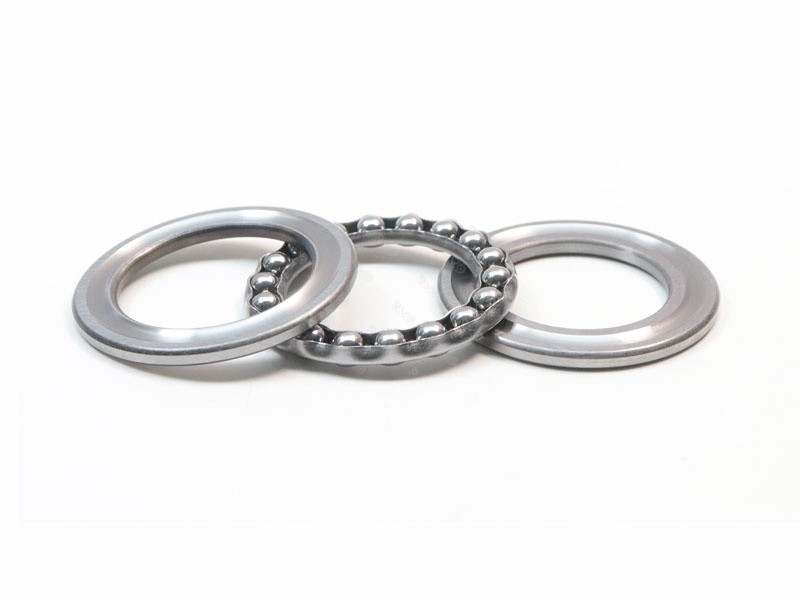

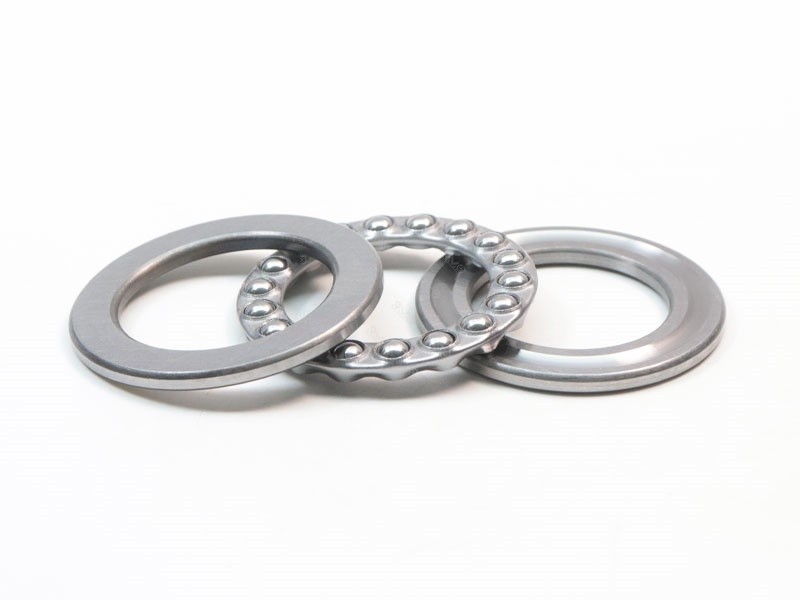

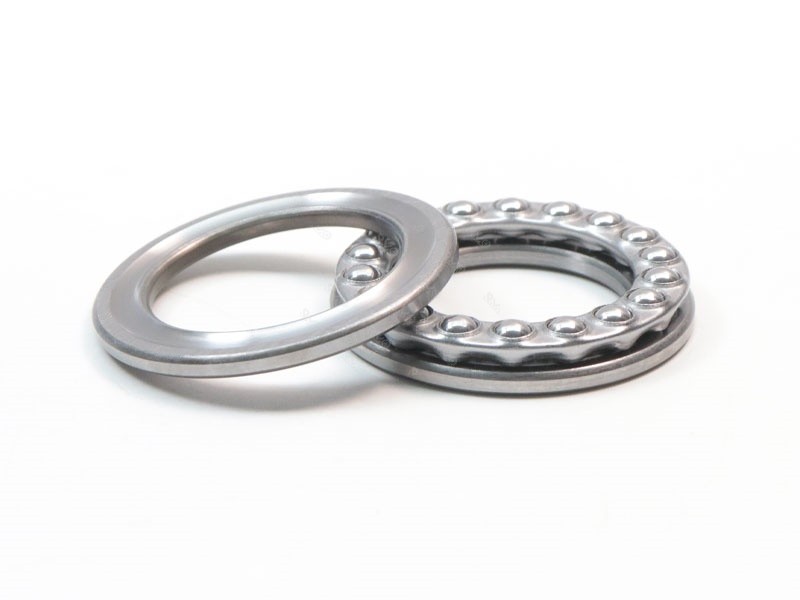

51106 is a single-direction thrust ball bearing. The components are separable. It is composed of an inner ring, an outer ring, and a combination frame of balls and a cage. The inner hole of the inner ring is machined by grinding, which can achieve a tight fit with the shaft, facilitating installation, disassembly, maintenance inspection, and allowing most components to be interchangeable.
Cage material | Steel, Nylon, Copper |
Branding | famous brand/RMO/Neutral/OEM |
Material | Chrome steel(Gcr15) or stainless steel |
Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
Shipping Port | GUANGZHOU,NINGBO,SHANGHAI |
Payment | 100% T/T or 30% T/T in advance ,70% T/T after finished production |
Service | Free sample can be provided |
Can only withstand axial loads in a single direction, and cannot withstand any radial loads. The maximum rotational speed is relatively low because the steel balls are affected by centrifugal force during rotation, and are prone to being pushed towards the outer side of the raceway and getting scratched, making it unsuitable for high-speed operation.

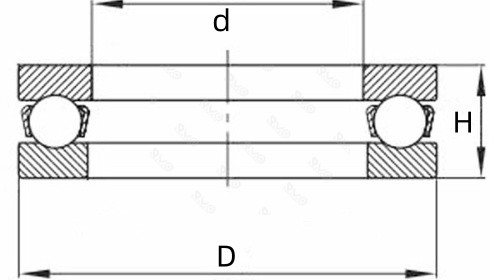

Bearing No. | d*D*H(mm) | Weight (KG) | Bearing No. | d*D*H(mm) | Weight (KG) |
51100 | 10*24*9 | 0.019 | 51122 | 110*145*25 | 1.04 |
51101 | 12*26*9 | 0.021 | 51124 | 120*155*25 | 1.12 |
51102 | 15*28*9 | 0.023 | 51126 | 130*170*30 | 1.68 |
51103 | 17*30*9 | 0.025 | 51128 | 140*180*31 | 2.03 |
51104 | 20*35*10 | 0.037 | 51130 | 150*190*31 | 2.16 |
51105 | 25*42*11 | 0.056 | 51132 | 160*200*31 | 2.27 |
51106 | 30*47*11 | 0.064 | 51134 | 170*215*34 | 3.27 |
51107 | 35*52*12 | 0.081 | 51136 | 180*225*34 | 3.37 |
51108 | 40*60*13 | 0.12 | 51138 | 190*240*37 | 3.95 |
51109 | 45*65*14 | 0.143 | 51140 | 200*250*37 | 4.14 |
51110 | 50*70*14 | 0.513 | 51144 | 220*270*37 | 4.51 |
51111 | 55*78*16 | 0.227 | 51148 | 240*300*45 | 7.35 |
51112 | 60*85*17 | 0.281 | 51152 | 260*320*45 | 7.94 |
51113 | 65*90*17 | 0.324 | 51156 | 280*350*53 | 12 |
51114 | 70*95*18 | 0.346 | 51160 | 300*380*62 | 17.1 |
51115 | 75*100*19 | 0.389 | 51164 | 320*400*63 | 18.5 |
51116 | 80*105*19 | 0.417 | 51168 | 340*420*64 | 19.9 |
51117 | 85*110*19 | 0.44 | 51172 | 360*440*65 | 20.4 |
51118 | 90*120*22 | 0.646 | 51180 | 400*480*65 | 23.8 |
51119 | 95*145*60 | 0.83 | 51184 | 420*500*65 | 24.21 |
51120 | 100*135*25 | 0.96 | 51192 | 460*560*80 | 41.7 |

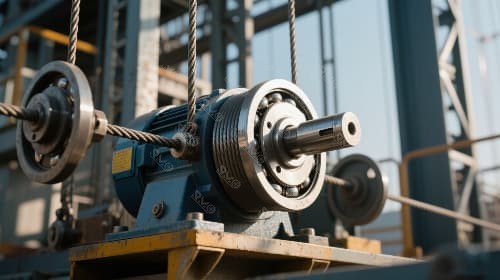

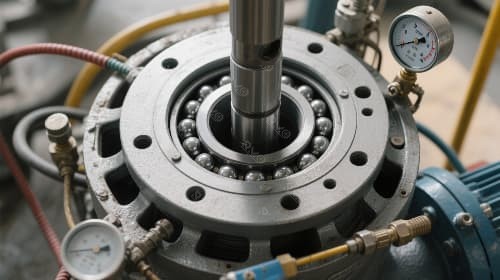

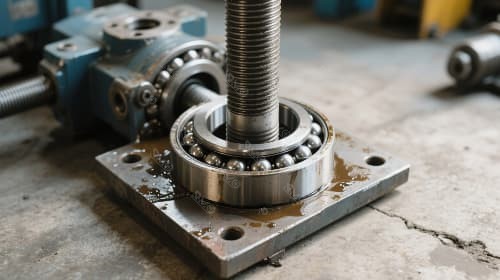

Suitable for components that bear a single axial load and have a relatively low rotational speed, such as crane hooks, vertical water pumps, vertical centrifuges, jacks, low-speed reducers, etc.
1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
