What to Consider When Selecting Deep Groove Ball Bearings

Choosing the right deep groove ball bearing means you need to match its features to your use. Your guide for picking bearings should look at important things like load type, speed, space for installation, and the environment. Many bearings are used in cars, electronics, and farming.

• You should check if your use needs bearings for radial, axial, or both loads.

• Think about how fast it will run and the working conditions, because these change how you use lubrication and how exact the bearing must be.

• Problems like high or low temperature and dirt also matter when picking a bearing.

Using a step-by-step way to pick bearings helps you get good performance and a long life for the bearing.

Key Factors in Choosing Deep Groove Ball Bearings

Load and Speed Requirements

When you select a deep groove ball bearing, you must first look at the load and speed requirements. These two factors decide if the bearing will last and work well in your application. Bearings handle three main types of loads: radial, axial, and combined. Radial loads push straight down on the bearing, like the weight of a spinning wheel. Axial loads push along the shaft, such as when a fan blade pulls or pushes air. Combined loads happen when both forces act at the same time, like in electric motors or gearboxes.

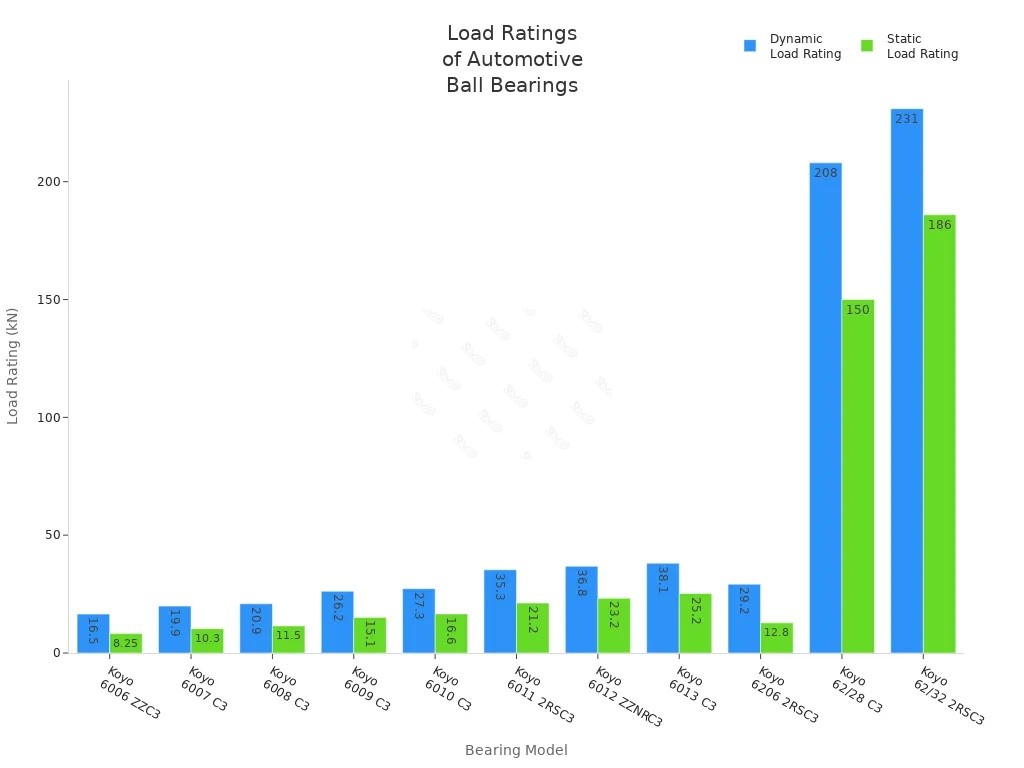

You need to match the bearing load to the job. If your machine needs high load-carrying capacity, pick a bearing with a higher dynamic and static load rating. The table below shows some standard load ratings for deep groove ball bearings used in cars:

Speed is just as important as load capacity. Deep groove ball bearings can run at speeds above 20,000 RPM. Smaller bearings spin faster because they have less weight and friction, but they carry less load. Larger bearings move slower but support more weight. If you need high-speed performance, you might choose ceramic bearings. These are lighter and have smoother surfaces, so they create less heat and friction. The type of lubrication also matters. Oil lets bearings run faster than grease. The design, such as the cage and seals, can change the maximum speed rating.

Tip: Always check both the load and speed ratings for your bearing. If you ignore these, your bearing may fail early.

Installation Space

The space where you install your bearing affects your choice. You must pick a bearing that fits the shaft and housing. If you have limited installation space, you need a bearing with the right size and shape. If you try to force a bearing into a tight spot, you can cause misalignment. This leads to abnormal vibration, noise, and even damage inside the bearing.

• If you do not install the bearing correctly, you may press on the wrong ring. This can damage the inside of the bearing.

• Misalignment and damage from poor installation lower the performance and lifespan of the bearing.

• Signs of trouble include strange noises, higher temperatures, and more vibration.

You should always measure your space before you choose a bearing. Proper fit helps the bearing last longer and work better.

Environmental Conditions

The environment around your bearing changes how it works. Temperature, moisture, and contamination are key factors in choosing the right bearing. High temperatures can make the bearing expand, break down the lubricant, and soften the metal. Low temperatures make the lubricant thick, which increases friction and wear. Both extremes shorten the life of the bearing.

Moisture and humidity cause rust and surface damage. If water, acids, or salts get inside, they break down the lubricant and harm the bearing. Dust, dirt, and chemicals also wear out the bearing surfaces and ruin the lubricant.

You can protect your bearing by using special materials and coatings. Stainless steel resists rust and works well in wet places like food factories or near the sea. Ceramic bearings are best for extreme conditions and high-speed jobs. Specialty alloys like titanium work in chemical plants or offshore rigs.

You can also use seals or shields to keep out water and dirt. Coatings like nickel or PTFE (Teflon) add another layer of protection. For very high or low temperatures, you can use special lubricants and cages. Some bearings use graphite blocks for lubrication at high heat.

Note: The right material and protection help your bearing last longer and keep its good wear resistance.

Rigidity and Misalignment

Rigidity means how stiff the bearing is. This affects how well it handles misalignment. If the bearing is not lined up right, the balls do not roll smoothly. This causes uneven load distribution and extra stress on the cage. Even a small misalignment, less than one degree, can shorten the life of the bearing.

• Misalignment pushes the rolling elements out of their path. This increases friction and wear.

• Extra stress on the cage can cause it to fail. Most retainer failures come from misalignment.

• Small bearings can handle less misalignment than large ones.

• More friction and heat from misalignment lead to faster wear and damage.

• Noise and vibration increase, which can hurt other machine parts.

You must install the bearing carefully to avoid misalignment. If you cannot avoid it, you need to check the bearing load and internal clearance. Proper alignment and fit help the bearing last longer and keep the machine running smoothly.

Remember: Rigidity and correct alignment are key factors in choosing a deep groove ball bearing for any application of deep groove ball bearings.

Bearing Types and Features

Single-Row vs. Double-Row Bearings

You can pick single-row or double-row bearings for your needs. Single-row bearings have one row of balls inside. They are good for light or medium loads. These bearings also work well at high speeds. You often see them in electric motors and power tools. Medical equipment also uses single-row bearings. Double-row bearings have two rows of balls. They can hold heavier loads and give more stability. These bearings are used in gearboxes and mining machines. Heavy-duty vehicles also use double-row bearings.

Tip: Pick double-row bearings if you need to carry heavy loads or work in tough places.

Open, Sealed, and Shielded Options

Bearings come as open, shielded, or sealed types. Open bearings do not have covers. They need clean places and must be oiled often. Shielded bearings have metal shields on the sides. These shields block big dirt but let in small dust and water. Sealed bearings have rubber seals. They keep out dirt, water, and dust. Sealed bearings hold grease inside and need less care. They last longer in dirty or wet places. But sealed bearings can get hotter and may not work for very fast speeds.

Bearing Dimensions

The size of a bearing changes how it works. Bigger bearings can carry more weight but are heavier. Large bearings can also cause misalignment. Wider bearings hold more load but may get hotter. The ball size affects load and friction too. You must match the bearing size to your load and speed. Right dimensions help spread the load and make things work better.

1. Pick the size based on the load type you have.

2. Think about speed, heat, and shaking in your machine.

3. Measure carefully to stop uneven load and early damage.

Accuracy and Precision Grades

Bearings come in different precision grades. These grades use ABEC or ISO numbers. Higher grades mean tighter fits and better work. High precision bearings lower noise and shaking. They help machines run smoother and last longer. You need high precision bearings for medical tools and special machines.

Note: High precision bearings make machines quieter, smoother, and more efficient.

Lubrication and Maintenance

Lubrication Type and Quantity

You must pick the right bearing lubrication. Most deep groove ball bearings use lithium-based grease. This grease works well for many jobs. It does not break down easily and can handle hot or cold temperatures. For fast-moving bearings, synthetic oils and oil mist help lower friction. They also keep the bearing cool. The base oil thickness and special additives are important. They help the bearing last longer and move smoothly.

The amount of bearing lubrication is very important too. If you use too much grease, it makes extra heat. It also causes more force to turn the bearing. If you use too little grease, the bearing wears out faster. It also gets hotter. You should fill the bearing with just enough grease. This makes a thin layer that protects the parts. It keeps the temperature steady and helps the bearing last longer. Using too much or too little grease can make the bearing fail early.

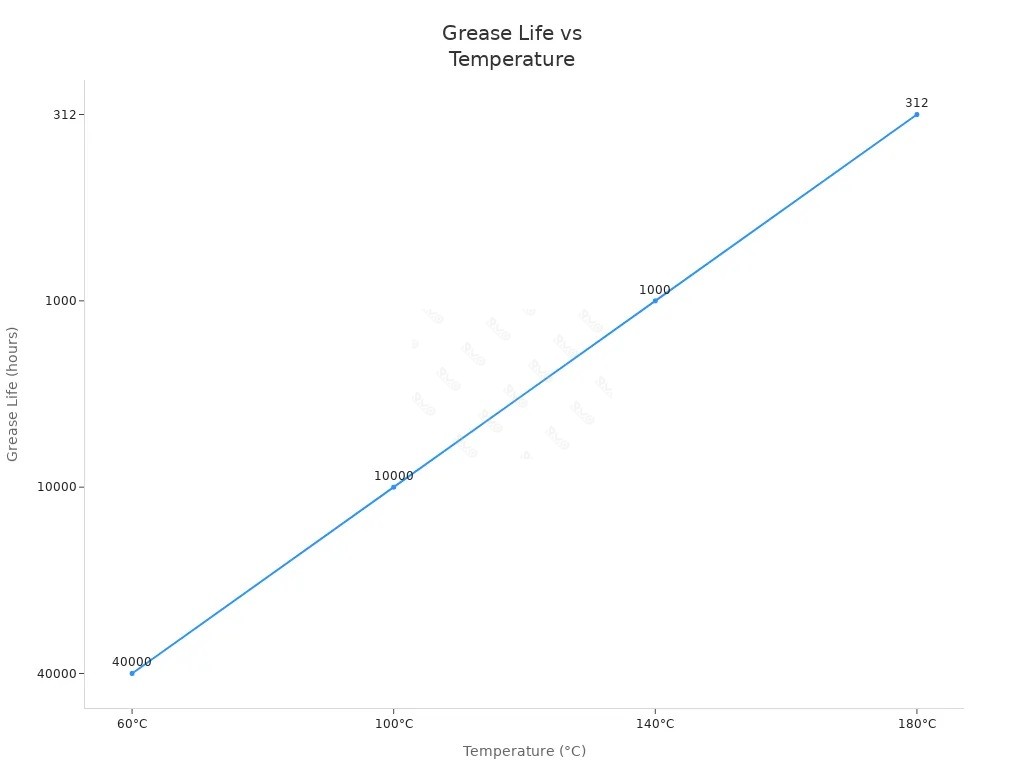

Tip: Grease does not last long when it gets hot. Always check you have the right amount for your job.

Sealing Options

Seals keep dust, water, and grease from getting in or out. In dusty places, you can use non-contact BRS seals, axial-contact HRS seals, or Z-type shields. These seals keep grease inside and block dirt. Some bearings use ELS lip seals for even better protection. You can also use labyrinth seals and spring-loaded shaft-wiping devices for tough jobs.

Note: Better seals keep out more dirt. They help the bearing last longer. Good seals also keep friction low and mean you do not need to check the bearing as often.

Maintenance Intervals

You should set up times to check your bearings. How often you check depends on speed, load, and where you use them. Sealed bearings can last their whole life without new grease. Open or shielded bearings need checks when the machine stops. Look for signs of wear, like strange noises or shaking. Write down the temperature and vibration to help plan when to check.

• Watch temperature and vibration to find problems early.

• Change bearings before they wear out.

• Keep everything clean when you put bearings in. Check them often to stop problems.

If you skip checks or use the wrong schedule, bearings can crack or get pits. They can also break apart. These problems make more noise and shaking. They can cause the bearing to fail. Good care helps bearings work well and keeps friction low in every job.

Installation and Performance

Mounting and Fit

When you install deep groove ball bearings, you need to work with care. Cleanliness is very important. Always use a dust-free and dry area. Unpack bearings only when you are ready to install them. This keeps out dirt and moisture. Before you start, check the bearing model and make sure the shaft and housing are clean. Use the right tools, like soft hammers or sleeves, to avoid damage. Never hit the bearing directly. Apply force only to the ring that fits the shaft or housing. Keep the bearing straight and aligned during mounting. If you use heat, do not go above 120°C. Induction heaters work best for this. After you finish, check that the bearing turns smoothly and makes no strange sounds. Add the right amount of grease or oil. Record the details for future checks.

Tip: Careful mounting helps you avoid misalignment, uneven wear, and early failure. Even small mistakes can shorten the life of your bearings.

Running Noise and Vibration

You may notice noise or vibration when your machine runs. These problems often come from worn parts, poor lubrication, or bad installation. If you use the wrong grease or too much of it, friction and heat will rise. Misalignment or bent shafts also cause vibration. Sometimes, defects inside the bearing or outside shocks make things worse. To lower noise and vibration, pick bearings with good design and materials. Use the right lubricant and amount. Make sure you install the bearing correctly and keep the area clean. If you hear new noises or feel more shaking, check for worn or damaged parts and replace them if needed.

• Use vibration isolators to protect your machine.

• Keep the temperature steady with cooling systems.

• Replace faulty bearings quickly to avoid bigger problems.

Choose a Bearing for Longevity

You want your machine to last a long time. To do this, you must choose a bearing that matches your load and speed needs. Look at the dynamic and static load ratings. Try not to use more than half the dynamic rating for daily work. This helps the bearing last longer. Pick the right design, like single-row or double-row, for your application. Materials matter too. Steel, ceramic, or special alloys each work best in different places. Make sure the bearing meets quality standards. Good maintenance, like regular checks and proper lubrication, also adds years to your machine. When you choose a bearing with care, you help your equipment run smoothly and avoid costly repairs.

Remember: When you choose a bearing, think about load, speed, fit, and environment. The right choice means better performance and longer life.

If picking a bearing feels hard, you do not need to do it alone. Many companies give you help and advice. You can look at online catalogs with lots of bearing choices. These catalogs show product details, 3D pictures, and technical facts. Selector guides and calculators help you compare bearings and check if they fit. You can also use them to guess how long a bearing will last. These tools make it easier to find the right bearing for your job.

Some companies give you more than just lists of products. You can read white papers, technical articles, and guides for special uses. These resources teach you how to pick bearings for places like robotics, food factories, or airplanes. You can also use tools to match part numbers or check material choices and stack up tolerances.

If you want personal help, you can talk to engineers online, by phone, or by email. Many companies let you ask their experts questions. You can ask for samples, prices, or even custom-made bearings. Some suppliers help with design, fixing problems, and picking the right lubrication.

Tip: Use these resources if your job has special needs or if you want to avoid mistakes. Expert help and online tools save you time and help you pick the best bearing for your project.

When you choose deep groove ball bearings, focus on every key factor. Use a step-by-step approach for the best results.

1. Check load, speed, and environment.

2. Install bearings with care and correct lubrication.

3. Maintain them regularly.

4. Ask experts or use manufacturer tools for special needs.
